SGParam Class Reference

The base class for the parameter types. More...

#include <SGParameter.hpp>

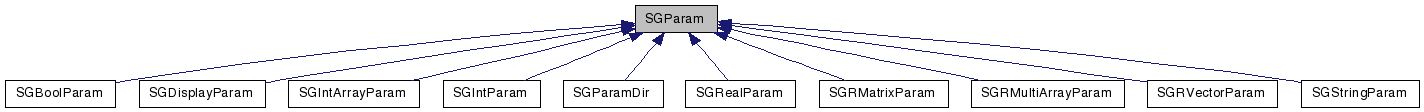

Inheritance diagram for SGParam:

[legend]Collaboration diagram for SGParam:

[legend]List of all members.

Public Member Functions
bool	HasType (char *the_type)
	Checks whether the parameter has a given type.
std::ostream &	PrintPath (std::ostream &s)
	Prints the path to the parameter with the name.
	SGParam (char *the_name, char *the_type, SGParam *the_tl, bool hdv=0)
	Constructor.
virtual	~SGParam ()
	Virtual destructor.
Static Public Member Functions
static SGParam *	Find (char *path, SGParam *list)
	Looks for a parameter having a given path in a given list.
static void	Read (char *file_name, SGParam *list)
	Reads all the parameters to a given list from a file.
static void	Print (SGParam *list, std::ostream &s, short indent=0)
	Print - prints the parameter names and values to a given stream.
Public Attributes
char *	name
	The idetifier of the parameter.
Protected Member Functions
virtual void	read_param ()=0
	Reads a value of the parameter from the input stream.
virtual void	print_param (std::ostream &s, short indent)=0
	Prints the name and the value of the parameter with a given indent.
Friends
class	SGParamDir

---

Detailed Description

The base class for the parameter types.

In an application, all parameters are objects of classes derived from SGParam. Every parameter has two essential features: its name and its type. The name is a null-terminated text string specified by the user. The type (i.e. what for a parameter - integer, real etc. it is) is defined by the implementation of the derived class. But the base class stores a symbolic identifier of the type (as a null-terminated string).

All parameters in the same directory should be arranged in a single-linked list. The pointer to the successor in this list is stored in the base class SGParam, too.

The derived classes should implement three main virtual functions:

1. read_param should read, parse and interpret the tokens of the parameter specification in the input file,
2. print_param should print the value of the parameter to a given output stream,
3. broadcast_param should send the value of the parameter in a parallelized application from the peer processor to the other ones.

---

Constructor & Destructor Documentation

SGParam::SGParam	(	char *	the_name,
		char *	the_type,
		SGParam *	the_tl,
		bool	hdv = 0
	)			[inline]

Constructor.

Parameters:

[in]	the_name	The name of the parameter
[in]	the_type	The character type id
[in]	the_tl	The next parameter in the list
[in]	hdv	if the parameter has a default value

virtual SGParam::~SGParam

(

)

[inline, virtual]

Virtual destructor.

---

Member Function Documentation

bool SGParam::HasType

(

char *

the_type

)

[inline]

Checks whether the parameter has a given type.

Parameters:

[in]

the_type

The type to check.

Returns:

true if [type] == [the_type]

std::ostream& SGParam::PrintPath

(

std::ostream &

s

)

Prints the path to the parameter with the name.

Parameters:

[in]

s

The stream to print to

SGParam * SGParam::Find	(	char *	path,
		SGParam *	list
	)			[static]

Looks for a parameter having a given path in a given list.

Parameters:

[in]	path	The path to find
[in]	list	The list of the parameters

Returns:

The pointer to the parameter or NULL if not found:

void SGParam::Read	(	char *	file_name,
		SGParam *	list
	)			[static]

Reads all the parameters to a given list from a file.

Parameters:

[in]	file_name	The file to read the parameters from
[in]	list	The list of the parameters

static void SGParam::Print	(	SGParam *	list,
		std::ostream &	s,
		short	indent = 0
	)			[static]

Print - prints the parameter names and values to a given stream.

Parameters:

[in]	list	The list of the parameters
[in]	s	The stream to write the values
[in]	indent	The indent for the parameters

virtual void SGParam::read_param

(

)

[protected, pure virtual]

Reads a value of the parameter from the input stream.

Implemented in SGDisplayParam, SGIntParam, SGRealParam, SGBoolParam, SGStringParam, SGIntArrayParam, SGRVectorParam, SGRMatrixParam, and SGRMultiArrayParam.

virtual void SGParam::print_param	(	std::ostream &	s,
		short	indent
	)			[protected, pure virtual]

Prints the name and the value of the parameter with a given indent.

Parameters:

[in]	s	The stream to print to
[in]	indent	The indent for the output lines

Implemented in SGDisplayParam, SGIntParam, SGRealParam, SGBoolParam, SGStringParam, SGIntArrayParam, SGRVectorParam, SGRMatrixParam, and SGRMultiArrayParam.

---

Friends And Related Function Documentation

friend class SGParamDir [friend]

---

Member Data Documentation

SGParam::name

The idetifier of the parameter.

---

The documentation for this class was generated from the following files:

• SGParameter.hpp
• SGParameter.cpp

---
