InterpolationAtPoint< T > Class Template Reference

Interpolates a partial solution linearly at a given point and adds this value multiplied by a given factor to the sparse grid solution. More...

#include <SGrid.hpp>

Inheritance diagram for InterpolationAtPoint< T >:

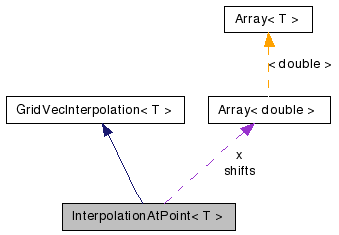

[legend]Collaboration diagram for InterpolationAtPoint< T >:

[legend]List of all members.

Public Member Functions
T &	Solution ()
	Returns the reference to the solution.
void	Rewind ()
	Sets the values to zero.
void	AddGridVec (T factor, GridVec< T > &vec)
	Adds a grid function to the current combination.
	InterpolationAtPoint (int the_size, Array< double > &the_position, Array< double > &the_shifts, int the_vec_no=0)
	InterpolationAtPoint (int the_size, Array< double > &the_position, double the_shift=0, int the_vec_no=0)
virtual	~InterpolationAtPoint ()
	Virtual destructor.

---

Detailed Description

template<typename T>
class InterpolationAtPoint< T >

Interpolates a partial solution linearly at a given point and adds this value multiplied by a given factor to the sparse grid solution.

This accumulator works with different types of grids: those having the dofs in the nodes, containing the boundary nodes or not, and those that with the dofs in the centers of the cells or on the cell edges/sides. The type of the grid is specified by the array of the shifts of the first/last grid points from the boundary: For every dimension there is the value specifying this shift in the units of the grid step. The possible values are in particular 0 for the node-centered grids with the boundary nodes, 0.5 for the cell-centered grids, 1 for the node-centered grids without the boundary nodes.

Note:

1. The point at which the value should be computed, may not lie in the shift area but only inside a grid cell or in a cell edge/side. Thus, for the shifts > 0 you may NOT specify a point on the boundary.
2. The point where should be specified by its coordinates in the unit hypercube.

---

Constructor & Destructor Documentation

template<typename T>

InterpolationAtPoint< T >::InterpolationAtPoint	(	int	the_size,
		Array< double > &	the_position,
		Array< double > &	the_shifts,
		int	the_vec_no = 0
	)			[inline]

template<typename T>

InterpolationAtPoint< T >::InterpolationAtPoint	(	int	the_size,
		Array< double > &	the_position,
		double	the_shift = 0,
		int	the_vec_no = 0
	)			[inline]

template<typename T>

virtual InterpolationAtPoint< T >::~InterpolationAtPoint

(

)

[inline, virtual]

Virtual destructor.

---

Member Function Documentation

template<typename T>

T& InterpolationAtPoint< T >::Solution

(

)

[inline]

Returns the reference to the solution.

template<typename T>

void InterpolationAtPoint< T >::Rewind

(

)

[inline, virtual]

Sets the values to zero.

Implements GridVecInterpolation< T >.

template<typename T>

void InterpolationAtPoint< T >::AddGridVec	(	T	factor,
		GridVec< T > &	vec
	)			[inline, virtual]

Adds a grid function to the current combination.

Parameters:

[in]	factor	The factor to multiply the grid function by
[in]	vec	The grid function to add

Implements GridVecInterpolation< T >.

---

The documentation for this class was generated from the following files:

• SGrid.hpp
• SGrid.cc

---
