GridInterpolation< T > Class Template Reference

Interpolates a partial solution at every point of a given grid and adds the result multiplied by a given factor to the sparse grid solution. More...

#include <SGrid.hpp>

Inheritance diagram for GridInterpolation< T >:

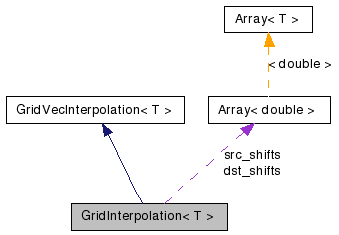

[legend]Collaboration diagram for GridInterpolation< T >:

[legend]List of all members.

Public Member Functions
void	Rewind ()
	Sets the values to zero.
void	AddGridVec (T factor, GridVec< T > &vec)
	Adds a grid function to the current combination.
	GridInterpolation (MultiVector< T > &the_dst, Array< double > &the_dst_shifts, Array< double > &the_src_shifts, int the_vec_no=0, bool is_const_near_bnd=0)
	Specifies all the data explicitly.
	GridInterpolation (MultiVector< T > &the_dst, double the_dst_shift, Array< double > &the_src_shifts, int the_vec_no=0, bool is_const_near_bnd=0)
	Specifies equal sparse grid shifts.
	GridInterpolation (MultiVector< T > &the_dst, Array< double > &the_dst_shifts, double the_src_shift=0, int the_vec_no=0, bool is_const_near_bnd=0)
	Specifies equal partial solution's grid shifts.
	GridInterpolation (MultiVector< T > &the_dst, double the_dst_shift=0, double the_src_shift=0, int the_vec_no=0, int vec_size=1, bool is_const_near_bnd=0)
	Specifies equal shifts.
virtual	~GridInterpolation ()
	Virtual destructor.

---

Detailed Description

template<typename T>
class GridInterpolation< T >

Interpolates a partial solution at every point of a given grid and adds the result multiplied by a given factor to the sparse grid solution.

This accumulator works with different types of grids: those having the dofs in the nodes, containing the boundary nodes or not, and those that with the dofs in the centers of the cells or on the cell edges/sides. The type of the grid is specified by the array of the shifts of the first/last grid points from the boundary: For every dimension there is the value specifying this shift in the units of the grid step. The possible values are in particular 0 for the node-centered grids with the boundary nodes, 0.5 for the cell-centered grids, 1 for the node-centered grids without the boundary nodes.

Note:

The grid types should be specified for the grid of the partial solution and for the grid of the sparse grid solution. These types may be different.

---

Constructor & Destructor Documentation

template<typename T>

GridInterpolation< T >::GridInterpolation	(	MultiVector< T > &	the_dst,
		Array< double > &	the_dst_shifts,
		Array< double > &	the_src_shifts,
		int	the_vec_no = 0,
		bool	is_const_near_bnd = 0
	)			[inline]

Specifies all the data explicitly.

Parameters:

[in]	the_dst	To accumulate the sparse grid solution in
[in]	the_dst_shifts	The shifts of 'the_dst' grid
[in]	the_src_shifts	The shifts of partial solution
[in]	the_vec_no	The index of the grid function
[in]	is_const_near_bnd	s. above

template<typename T>

GridInterpolation< T >::GridInterpolation	(	MultiVector< T > &	the_dst,
		double	the_dst_shift,
		Array< double > &	the_src_shifts,
		int	the_vec_no = 0,
		bool	is_const_near_bnd = 0
	)			[inline]

Specifies equal sparse grid shifts.

Parameters:

[in]	the_dst	To accumulate the sparse grid solution in
[in]	the_dst_shift	The shifts of 'the_dst' grid
[in]	the_src_shifts	The shifts of partial solution
[in]	the_vec_no	The index of the grid function
[in]	is_const_near_bnd	s. above

template<typename T>

GridInterpolation< T >::GridInterpolation	(	MultiVector< T > &	the_dst,
		Array< double > &	the_dst_shifts,
		double	the_src_shift = 0,
		int	the_vec_no = 0,
		bool	is_const_near_bnd = 0
	)			[inline]

Specifies equal partial solution's grid shifts.

Parameters:

[in]	the_dst	To accumulate the sparse grid solution in
[in]	the_dst_shifts	The shifts of 'the_dst' grid
[in]	the_src_shift	The shifts of partial solution
[in]	the_vec_no	The index of the grid function
[in]	is_const_near_bnd	s. above

template<typename T>

GridInterpolation< T >::GridInterpolation	(	MultiVector< T > &	the_dst,
		double	the_dst_shift = 0,
		double	the_src_shift = 0,
		int	the_vec_no = 0,
		int	vec_size = 1,
		bool	is_const_near_bnd = 0
	)			[inline]

Specifies equal shifts.

Parameters:

[in]	the_dst	To accumulate the sparse grid solution in
[in]	the_dst_shift	The shifts of 'the_dst' grid
[in]	the_src_shift	The shifts of partial solution
[in]	the_vec_no	# of the grid function in the GridVec's
[in]	vec_size	Number of dofs in a grid point
[in]	is_const_near_bnd	s. above

template<typename T>

virtual GridInterpolation< T >::~GridInterpolation

(

)

[inline, virtual]

Virtual destructor.

---

Member Function Documentation

template<typename T>

void GridInterpolation< T >::Rewind

(

)

[inline, virtual]

Sets the values to zero.

Implements GridVecInterpolation< T >.

template<typename T>

void GridInterpolation< T >::AddGridVec	(	T	factor,
		GridVec< T > &	vec
	)			[inline, virtual]

Adds a grid function to the current combination.

Parameters:

[in]	factor	The factor to multiply the grid function by
[in]	vec	The grid function to add

Implements GridVecInterpolation< T >.

---

The documentation for this class was generated from the following files:

• SGrid.hpp
• SGrid.cc

---
