MultiArray< T > Class Template Reference

The multidimensional variabled size array class. More...

#include <MultiArray.hpp>

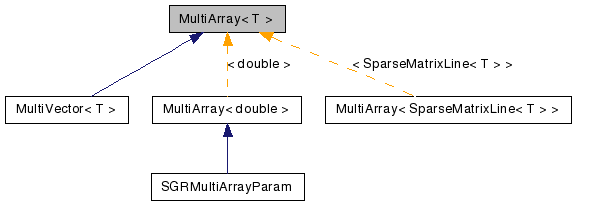

Inheritance diagram for MultiArray< T >:

[legend]Collaboration diagram for MultiArray< T >:

[legend]List of all members.

Public Member Functions
long	Dimension () const
	Returns the dimensionality of the array.
int	Length (int i) const
	Returns the size for a given dimension.
const Array< int > &	Lengths () const
	Returns all the lengths.
long	TotalNOfElements () const
	Returns the total number of elem. in the array.
long	SubArrayTotalLen (int n) const
	Raw length of subarrays reference by first n indices.
T *	Entries ()
	Returns the pointer to the 'raw' array of the entries.
const T *	Entries () const
	Returns a const-pointer to the 'raw' array of the entries.
const T &	operator[] (long offset) const
	An element by an absolute position.
T &	operator[] (long offset)
	An element by an absolute position.
const T &	operator[] (const MultiIndex &index) const
	References an element by a multiindex.
T &	operator[] (const MultiIndex &index)
	References an element by a multiindex.
const T *	operator() (const MultiIndex &index) const
	A subarray by a multiindex.
T *	operator() (const MultiIndex &index)
	A subarray by a multiindex.
long	Offset (const MultiIndex &index, long d) const
	The offset of an entry referenced by 'd' elems of 'index'.
long	Offset (const MultiIndex &index) const
	Returns the offset of an entry for a given multiindex.
void	Position (long offset, MultiIndex &index) const
	Computes the multiindex for an offset.
MultiArray< T > &	operator= (const MultiArray< T > &src)
	Standard assignment.
MultiArray< T > &	operator= (const T &value)
	Sets constant values to all the elements.
void	SetZero ()
	Sets all the entries to zero.
void	Reset ()
	Releases the memory, make the sizes undefined.
void	Reset (const Array< int > &new_length, T *mem=NULL)
	Sets the new sizes, reallocates memory.
void	Reset (const Array< int > &new_length, int block_sz, T *mem=NULL)
	Sets the new sizes with the block size, reallocates memory.
void	Reset (int len, T *mem=NULL)
	Sets new sizes and reallocates memory:.
bool	NextPos (MultiIndex &index) const
	Go lexicographically to the next position.
bool	NextPos (MultiIndex &index, int range) const
	Go to the next position in the subarray.
bool	NextPos (MultiIndex &index, SelectedDim &subgrid) const
	Go to the next position in the selected dimensions.
void	SaveAsciiAs (char *file_name)
	The ASCII output into a file (cf. 'operator <<' below):.
void	ReadAsciiFrom (char *file_name)
	The ASCII input into a file (cf. 'operator >>' below):.
	MultiArray ()
	Zero sizes, no memory.
	MultiArray (const MultiArray< T > &ma)
	MultiArray (const Array< int > &len)
	MultiArray by given sizes.
	MultiArray (const Array< int > &len, int block_sz)
	MultiArray by given grid sizes and the additional block size.
	MultiArray (int len, T *mem=NULL)
	1d MultiArray
Protected Attributes
Array< T >	elements
Array< int >	length
Friends
std::ostream &	operator (std::ostream &, MultiArray< T > &)
std::istream &	operator>> (std::istream &, MultiArray< T > &)
	The C++-style input operator.

---

Detailed Description

template<typename T>
class MultiArray< T >

The multidimensional variabled size array class.

MultiArray<T> is a multidimensional variable size array of elements of type <T>. Not only the sizes but also the dimensionality is variable. This template is used to represent grid functions (cf. MultiVector<T>) and other grid objects like sparse matrices (cf. SparseMatrix<T>). For MultiArray<T>, T may be any type.

Note:

Define CHECK_ARRAY_RANGE to switch on the range checking at the indexation. While that helps at debugging it takes a lot of computation time.

There are two types of the indexation operators: [] and (). The first one references the entries of the array and has the return type T & so that you can you it for reading and writing the entries. If the argument of this operation is a multiindex, it must have the same length as 'length'. The second operator references subarrays. Its argument is a multiindex whose length may be less that that of 'length'. The operation returns the pointer to the subarray containing all the entries whose first indices coincide with the given ones.

---

Constructor & Destructor Documentation

template<typename T>

MultiArray< T >::MultiArray

(

)

[inline]

Zero sizes, no memory.

template<typename T>

MultiArray< T >::MultiArray

(

const MultiArray< T > &

ma

)

[inline]

Duplication

template<typename T>

MultiArray< T >::MultiArray

(

const Array< int > &

len

)

[inline]

MultiArray by given sizes.

Parameters:

[in]

len

The sizes.

template<typename T>

MultiArray< T >::MultiArray	(	const Array< int > &	len,
		int	block_sz
	)			[inline]

MultiArray by given grid sizes and the additional block size.

Parameters:

[in]	len	The sizes
[in]	block_sz	The additional dimension (the block size)

template<typename T>

MultiArray< T >::MultiArray	(	int	len,
		T *	mem = NULL
	)			[inline]

1d MultiArray

Parameters:

[in]	len	The length of the 1d array.
[in]	mem	The memory to place the 'T'-objects (optional).

---

Member Function Documentation

template<typename T>

long MultiArray< T >::Dimension

(

)

const [inline]

Returns the dimensionality of the array.

template<typename T>

int MultiArray< T >::Length

(

int

i

)

const [inline]

Returns the size for a given dimension.

Parameters:

[in]

i

The dimension

Returns:

Const-reference to size of dimension i

template<typename T>

const Array<int>& MultiArray< T >::Lengths

(

)

const [inline]

Returns all the lengths.

Returns:

Reference to length array.

template<typename T>

long MultiArray< T >::TotalNOfElements

(

)

const [inline]

Returns the total number of elem. in the array.

template<typename T>

long MultiArray< T >::SubArrayTotalLen

(

int

n

)

const [inline]

Raw length of subarrays reference by first n indices.

Parameters:

[in]

n

Number of the first indices

Returns:

Raw length of subarrays reference by first n indices.

template<typename T>

T* MultiArray< T >::Entries

(

)

[inline]

Returns the pointer to the 'raw' array of the entries.

Returns:

Pointer to the 'raw' array of the entries.

template<typename T>

const T* MultiArray< T >::Entries

(

)

const [inline]

Returns a const-pointer to the 'raw' array of the entries.

Returns:

Const-pointer to the 'raw' array of the entries.

template<typename T>

const T& MultiArray< T >::operator[]

(

long

offset

)

const [inline]

An element by an absolute position.

Parameters:

[in]

offset

the position

Returns:

Const-reference of element at position.

template<typename T>

T& MultiArray< T >::operator[]

(

long

offset

)

[inline]

An element by an absolute position.

Parameters:

[in]

offset

the position

Returns:

reference of element at position.

template<typename T>

const T & MultiArray< T >::operator[]

(

const MultiIndex &

index

)

const [inline]

References an element by a multiindex.

The multiindex must have the same length as the dimensionality of the MultiArray

Parameters:

[in]

index

The multiindex.

Returns:

Const-reference to the corresponding element.

template<typename T>

T & MultiArray< T >::operator[]

(

const MultiIndex &

index

)

[inline]

References an element by a multiindex.

The multiindex must have the same length as the dimensionality of the MultiArray

Parameters:

[in]

index

The multiindex.

Returns:

Reference to the corresponding element.

template<typename T>

const T* MultiArray< T >::operator()

(

const MultiIndex &

index

)

const [inline]

A subarray by a multiindex.

template<typename T>

T* MultiArray< T >::operator()

(

const MultiIndex &

index

)

[inline]

A subarray by a multiindex.

template<typename T>

long MultiArray< T >::Offset	(	const MultiIndex &	index,
		long	d
	)			const [inline]

The offset of an entry referenced by 'd' elems of 'index'.

template<typename T>

long MultiArray< T >::Offset

(

const MultiIndex &

index

)

const [inline]

Returns the offset of an entry for a given multiindex.

template<typename T>

void MultiArray< T >::Position	(	long	offset,
		MultiIndex &	index
	)			const [inline]

Computes the multiindex for an offset.

The size of the 'index' argument ist set automatically.

Parameters:

[in]	offset	The offset
[out]	index	To save the multiindex.

template<typename T>

MultiArray<T>& MultiArray< T >::operator=

(

const MultiArray< T > &

src

)

[inline]

Standard assignment.

'this' and 'src' may have different sizes.

Parameters:

[in]

src

Source-array

Reimplemented in MultiVector< T >.

template<typename T>

MultiArray<T>& MultiArray< T >::operator=

(

const T &

value

)

[inline]

Sets constant values to all the elements.

template<typename T>

void MultiArray< T >::SetZero

(

)

[inline]

Sets all the entries to zero.

template<typename T>

void MultiArray< T >::Reset

(

)

[inline]

Releases the memory, make the sizes undefined.

template<typename T>

void MultiArray< T >::Reset	(	const Array< int > &	new_length,
		T *	mem = NULL
	)			[inline]

Sets the new sizes, reallocates memory.

Parameters:

[in]	new_length	The new sizes
[in]	mem	(optionally) the memory where to place the 'T'-objects.

template<typename T>

void MultiArray< T >::Reset	(	const Array< int > &	new_length,
		int	block_sz,
		T *	mem = NULL
	)			[inline]

Sets the new sizes with the block size, reallocates memory.

Parameters:

[in]	new_length	The new sizes
[in]	block_sz	Additional dimension (the block size) IFF != 1
[in]	mem	The memory where to place the 'T'-objects (optional)

Note:

If the given block size is 1 no new dimension is created to index the block entries. Then the function is equivalent to Reset(const Array<int>, T * mem). Otherwise, a new dimension is added to the block sizes.

template<typename T>

void MultiArray< T >::Reset	(	int	len,
		T *	mem = NULL
	)			[inline]

Sets new sizes and reallocates memory:.

The 1d version (creates a 1d array)

Parameters:

[in]	len	The size of the 1d array.
[in]	mem	The memory where to place the 'T'-objects (optional).

template<typename T>

bool MultiArray< T >::NextPos

(

MultiIndex &

index

)

const [inline]

Go lexicographically to the next position.

Parameters:

[in]

index

The index to update

template<typename T>

bool MultiArray< T >::NextPos	(	MultiIndex &	index,
		int	range
	)			const [inline]

Go to the next position in the subarray.

Parameters:

[in]	index	The index to update.
[in]	range	Only the first 'range' indices are considered and changed.

template<typename T>

bool MultiArray< T >::NextPos	(	MultiIndex &	index,
		SelectedDim &	subgrid
	)			const [inline]

Go to the next position in the selected dimensions.

Parameters:

[in]	index	The index to update.
[in]	subgrid	The selected subgrid.

template<typename T>

void MultiArray< T >::SaveAsciiAs

(

char *

file_name

)

[inline]

The ASCII output into a file (cf. 'operator <<' below):.

Parameters:

[in]

file_name

The name of the file where to save

template<typename T>

void MultiArray< T >::ReadAsciiFrom

(

char *

file_name

)

[inline]

The ASCII input into a file (cf. 'operator >>' below):.

Parameters:

[in]

file_name

The name of the file from where to load

---

Friends And Related Function Documentation

template<typename T>

std::ostream& operator	(	std::ostream &	,
		MultiArray< T > &
	)			[friend]

template<typename T>

std::istream& operator>>	(	std::istream &	,
		MultiArray< T > &
	)			[friend]

The C++-style input operator.

Reads values of the array from a stream in the format of operator << . On errors like memory lack the function throws an exception.

---

Member Data Documentation

template<typename T>

Array<T> MultiArray< T >::elements [protected]

Keeps the entries, length! elements.

template<typename T>

Array<int> MultiArray< T >::length [protected]

Keeps the sizes for every dimension.

---

The documentation for this class was generated from the following file:

• MultiArray.hpp

---
