SysTransfer< T > Class Template Reference

The transfer operators base class template for vector equations. More...

#include <Transfer.hpp>

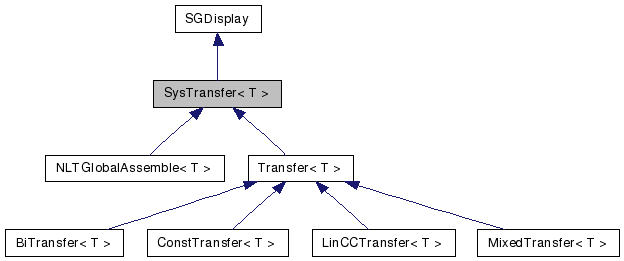

Inheritance diagram for SysTransfer< T >:

[legend]Collaboration diagram for SysTransfer< T >:

[legend]List of all members.

Public Member Functions
virtual void	PrintParam ()=0
	Prints the name of the transfer object and (optionally) the parameters.
virtual bool	ProperGrids (int i, const Array< int > &p_domain_size, const Array< int > &p_range_size)=0
	Returns true if the grid sizes may correspond to the domain and the range of the prolongation (or the range and the domain of the restriction) for a given part of the system (i.e. for a given index i).
virtual void	Prolong (GridVec< T > &src, GridVec< T > &dst)=0
	The prolongation.
virtual void	Restrict (GridVec< T > &src, GridVec< T > &dst)=0
	The restriction.
virtual	~SysTransfer ()
	Virtual destructor.

---

Detailed Description

template<typename T>
class SysTransfer< T >

The transfer operators base class template for vector equations.

This class template is a generic interface for all transfer (prolongation/restriction) operators used for ex. in the geometrical multigrid methods. All the functions declared in this class are virtual and should be implemented for particular transfer operators.

Note:

The templates depend on a type T. This type should satisfy the conditions listed in small_matrix.hpp for small matrices.

---

Constructor & Destructor Documentation

template<typename T>

virtual SysTransfer< T >::~SysTransfer

(

)

[inline, virtual]

Virtual destructor.

---

Member Function Documentation

template<typename T>

virtual void SysTransfer< T >::PrintParam

(

)

[pure virtual]

Prints the name of the transfer object and (optionally) the parameters.

Implemented in NLTGlobalAssemble< T >, BiTransfer< T >, ConstTransfer< T >, LinCCTransfer< T >, and MixedTransfer< T >.

template<typename T>

virtual bool SysTransfer< T >::ProperGrids	(	int	i,
		const Array< int > &	p_domain_size,
		const Array< int > &	p_range_size
	)			[pure virtual]

Returns true if the grid sizes may correspond to the domain and the range of the prolongation (or the range and the domain of the restriction) for a given part of the system (i.e. for a given index i).

If the subclass does not implement transfer operator for some index, the function should return false.

Parameters:

[in]	i	The part of the system
[in]	p_domain_size	For the domain of the prolongation
[in]	p_range_size	For the range of the prolongation

Implemented in NLTGlobalAssemble< T >.

template<typename T>

virtual void SysTransfer< T >::Prolong	(	GridVec< T > &	src,
		GridVec< T > &	dst
	)			[pure virtual]

The prolongation.

Parameters:

[in]	src	The vector to prolong
[in]	dst	The result (the sizes must be initialized!)

Implemented in NLTGlobalAssemble< T >.

template<typename T>

virtual void SysTransfer< T >::Restrict	(	GridVec< T > &	src,
		GridVec< T > &	dst
	)			[pure virtual]

The restriction.

Parameters:

[in]	src	The vector to restrict
[in]	dst	The result (the sizes must be initialized!)

Implemented in NLTGlobalAssemble< T >.

---

The documentation for this class was generated from the following file:

• Transfer.hpp

---
